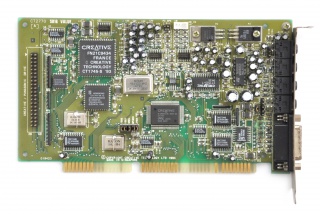

Creative Sound Blaster 16 Value rev A
From Vogons Wiki
Creative Sound Blaster 16 Value rev A
| Bus type | ISA | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bus width | 16-bit | ||||||||||||||||
| Bus speed | 8 MHz | ||||||||||||||||
| 8-bit ISA compatible? | |||||||||||||||||
| Manufacturer | Creative Labs | ||||||||||||||||
| Chipset | CT1747 | ||||||||||||||||
| Compatible with | Sound Blaster | ||||||||||||||||
| Connectors | Mic, Line in, Line out, Speaker out, Gameport | ||||||||||||||||
| Requires -5VDC? | No | ||||||||||||||||
| Requires -12VDC? | Yes | ||||||||||||||||
| Config method | Jumpers, Software | ||||||||||||||||
| Audio | |||||||||||||||||
| Model | CT2770A | ||||||||||||||||
| Full duplex | Unknown | ||||||||||||||||
| Max sample rate | Unknown | ||||||||||||||||
| Channels | 2 | ||||||||||||||||
| FM synth | OPL3 | ||||||||||||||||
| Internal connectors |
|
||||||||||||||||
| Factory memory | 0 0 B |
||||||||||||||||
| CD interface | Matsushita MKE | ||||||||||||||||
| Driver | Missing download URL | ||||||||||||||||
The Sound Blaster 16 Value rev A is a minor revision to the original Creative Sound Blaster 16 Value. The PCB has been partly redesigned to eliminate the older obsolete CD interfaces. The card is still named the same as the older revision, and the only hint of changes is the letters "[A]" after the CT model number.
Additional photos
Underside
