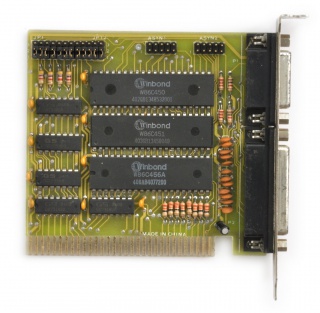

Pine PT-602A
| Bus type | ISA |
|---|---|
| Bus width | 8-bit |
| Bus speed | 8 MHz |
| Manufacturer | Unknown |
| Chipset | Unknown |
| Compatible with | RS232, LPT, Gameport, Pine PT-602A |
| Connectors | Gameport, LPT |
| Requires -5VDC? | No |
| Requires -12VDC? | Yes |
| Config method | Jumpers |
| IO Controller | |
| Serial ports | 2 |
| UART | 8250 |
| COM1/2/3/4? | Yes / Yes / Yes / Yes |
| Parallel ports | 1 |
| Bi-dir? | |
| ECP? | |
| EPP? | |
| LPT1/2/3/4? | Yes / Yes / No / No |
| Game ports | 1 |
| Driver | N/A |
This is a generic I/O card with a Winbond chipset.
Additional photos
Underside
Clones
This card has clones:
- Generic AT IO card
- Pine PT-602A
