S3 Trio64V+
From Vogons Wiki
S3 Trio64V+
| Bus type | PCI |
|---|---|
| Bus width | 32-bit |
| Bus speed | 33 MHz |
| PCI 5V tolerant? | Yes |
| PCI 3.3V tolerant? | Using "Is PCI 3.3V tolerant" as property chain is not permitted during the annotation process. |
| Manufacturer | S3 |
| Chipset | 86C765 |
| Compatible with | VGA |
| Connectors | VGA |
| Requires -5VDC? | No |
| Requires -12VDC? | No |
| Video Output | |
| Max memory | 2 MB 2,097,152 B |
| Max resolution | Unknown |
| ROM type | 28-pin JEDEC |
| Driver | Missing download URL |

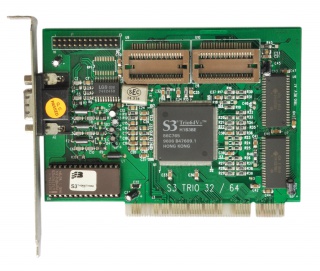

The S3 Trio64V+ is a common PCI video card.
Additional photos
Underside
Expansion RAM
This card uses S416270DJ-06 RAM chips. This is a 256k x 16-bit 60ns 5V EDO chip[1], in a 40-pin SOJ package. Suitable chips can be found on eBay by searching for 256Kx16 memory chips and confirming they are of the correct package type and 60ns or faster.
Compatible part numbers are:
- EliteMT M11B416256A - untested
