Sound Blaster 16 (C16F) IDE
From Vogons Wiki

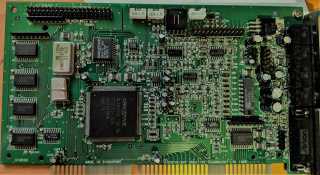

Sound Blaster 16 (C16F) IDE
_IDE.jpg)
| Bus type | ISA | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bus width | 16-bit | ||||||||||||||||
| Bus speed | 8 MHz | ||||||||||||||||
| 8-bit ISA compatible? | |||||||||||||||||
| Manufacturer | Creative Labs | ||||||||||||||||
| Chipset | CT2502 | ||||||||||||||||
| Compatible with | Sound Blaster | ||||||||||||||||
| Connectors | Mic, Line in, Line out, spk out, Gameport | ||||||||||||||||
| Requires -5VDC? | No | ||||||||||||||||
| Requires -12VDC? | Yes | ||||||||||||||||
| Config method | PnP | ||||||||||||||||
| Audio | |||||||||||||||||
| Model | CT2940 | ||||||||||||||||
| Full duplex | Unknown | ||||||||||||||||
| Max sample rate | Unknown | ||||||||||||||||
| Channels | 2 | ||||||||||||||||
| FM synth | Unknown | ||||||||||||||||
| Internal connectors |
|
||||||||||||||||
| Factory memory | 0 MB 0 B |
||||||||||||||||
| CD interface | 1 "1" is not in the list (None, IDE, SCSI, Matsushita MKE, Sony, LMSI, Mitsumi) of allowed values for the "Has CD interface" property. |
||||||||||||||||
| Driver | Vogon Driver | ||||||||||||||||
The Sound Blaster 16 (C16F) IDE is another variant in the SB16 series. It appears to be available with and without an IDE interface, and variably with either the Creative CQM (CT1978) or Yamaha OPL3 (YMF289) FM synth.
Additional photos
Underside
_underside.jpg)
Variants
There are different versions of this card available:
- Creative Sound Blaster 16 (C16F) - without IDE CD interface
