Teac FD-55BR
Teac FD-55BR
| Bus type | PC Floppy |
|---|---|
| Bus width | 1-bit |
| Bus speed | 250 kHz0.25 MHz |
| Manufacturer | Teac |
| Chipset | Unknown |
| Compatible with | DOS 360kB, DOS 180kB |
| Connectors | None |
| Requires -5VDC? | No |
| Requires -12VDC? | No |
| Floppy Drive | |
| Media type | 5.25 inch floppy diskProperty "Media type" has a restricted application area and cannot be used as annotation property by a user. |
| Sides | 2 |
| Tracks | 40 |
| Density | Double |
| Driver | N/A |
The Teac FD-55BR is the most recent Teac FD-55 series design of the PC-standard 360kB drive. This drive is a true 40-track drive, with heads twice the width of those in 80-track drives.
Additional photos

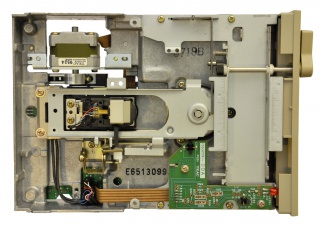

Underside
